14 MIG Welding Tips & Tricks for Beginners

MIG welding (GMAW) is one of the most popular forms of welding and often considered easier to learn than stick welding. While it might seem straightforward at first, becoming proficient at MIG welding still requires dedication and practice.
Learning to MIG weld will feel more natural once you’ve developed proper technique through consistent practice.
Having a few tips and tricks in your back pocket will help you improve your skills, learn to MIG weld faster and avoid many mistakes beginners make.

1. Choose the Right Wire Size

MIG welding wire comes in various diameters, and beginners often want to stick with just one size for everything.

The problem is that different material thicknesses require different wire sizes.
Using the wrong wire diameter can lead to lack of penetration, burn-through, excessive spatter, and poor wire feeding.
For most DIY and light industrial work, .023″, .030″, and .035″ wire sizes will handle the majority of your welding needs.

2. Use the Right Shielding Gas

The great thing about MIG welding is that you can achieve clean, professional-looking welds with the right gas mixture.

Pure CO2 is cheaper but produces more spatter and rougher-looking welds.
For the cleanest welds, use a mix of 75% Argon and 25% CO2, which will give you smooth beads with minimal spatter.
The purpose of this mixture is specifically for cleaner welds on mild steel, though different mixtures exist for other materials.

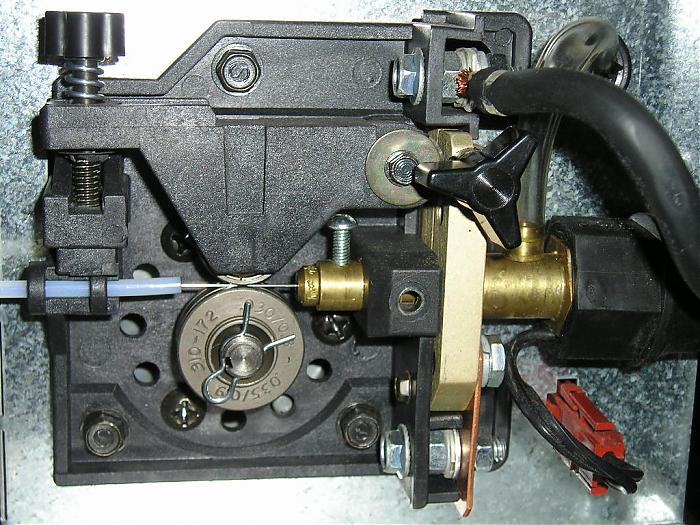

3. Set Up Your Drive Rolls Correctly

If you’re a beginner, proper drive roll tension is crucial for consistent wire feeding. Too much tension can deform the wire, while too little will cause feed issues.

As you adjust the tension, you should be able to stop the wire with your gloved hand while it’s feeding.
A properly adjusted drive roll should leave no visible marks on the wire and feed smoothly without stuttering.

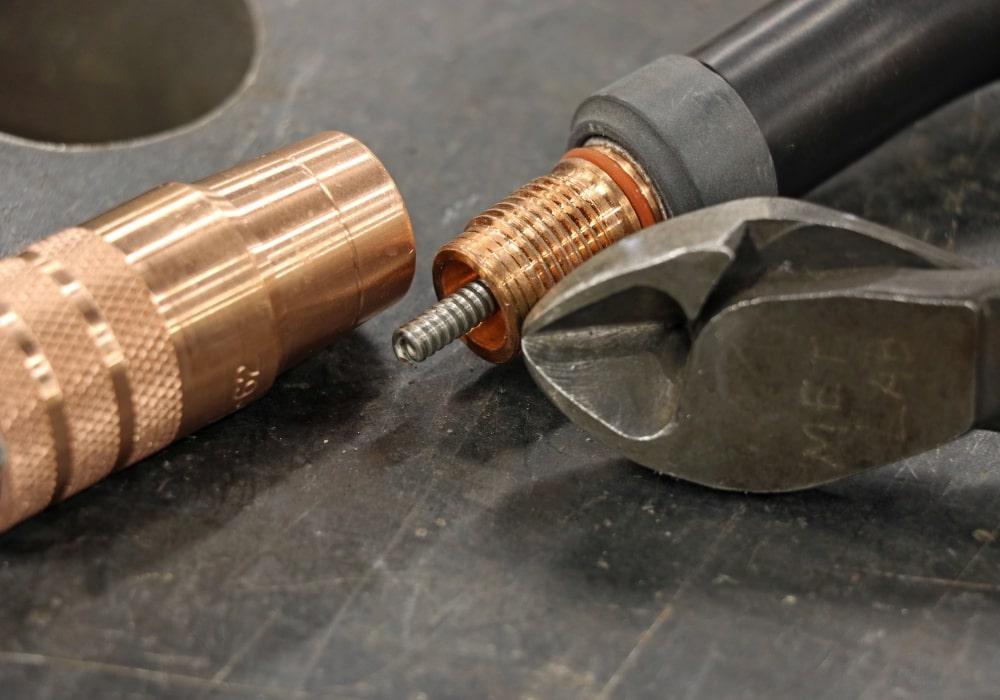

4. Keep Your Wire and Gun Clean

MIG welding wire must stay clean and free from rust to work effectively. When you buy a new spool, it comes sealed in plastic.
Always keep unused wire protected from the environment.

Once you start using the wire, regularly check the contact tip and nozzle for spatter buildup.
For best results, clean your gun’s nozzle with MIG pliers between welds and replace contact tips when they become worn.

5. Prep Your Material

Even though MIG welding is more forgiving on clean metal than stick welding, proper preparation is still crucial.

Clean metal results in better arc starts, less spatter, and stronger welds.
Use a grinder or wire brush to remove rust, paint, and mill scale before welding.
The cleaner your material, the better your welds will look and perform.

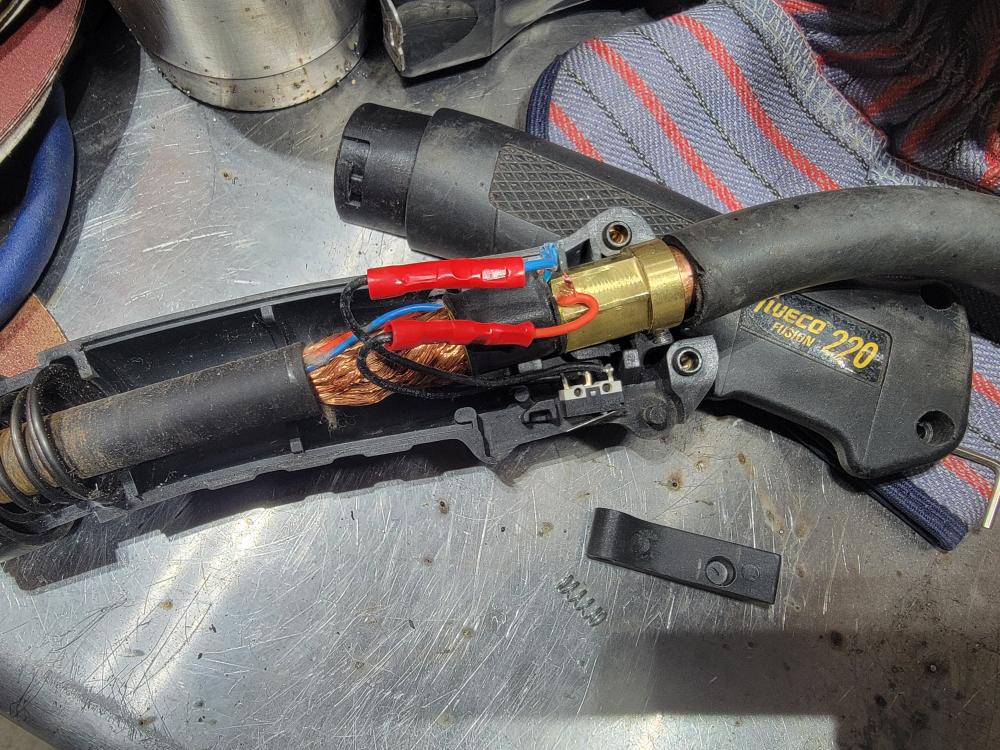

6. Master the Trigger Control

There are two main ways to start your weld: pull and squeeze, or squeeze and pull.

It’s important to learn both methods, but most beginners find success with squeezing the trigger before moving.
To start well, hold the gun at the correct angle, squeeze the trigger, and begin moving once the arc starts.
This technique helps prevent cold starts and ensures good fusion at the beginning of your weld.

7. Maintain Proper Stick-Out

Stick-out (the length of wire extending from the contact tip) is crucial in MIG welding, and maintaining the right length takes practice.

As a general rule, keep your stick-out between ¼” to ⅜” for most applications.
For example, when welding with .030″ wire, aim for about ⅜” stick-out. Too long or too short will affect your arc characteristics and weld quality.
With practice, maintaining the right stick-out becomes automatic.

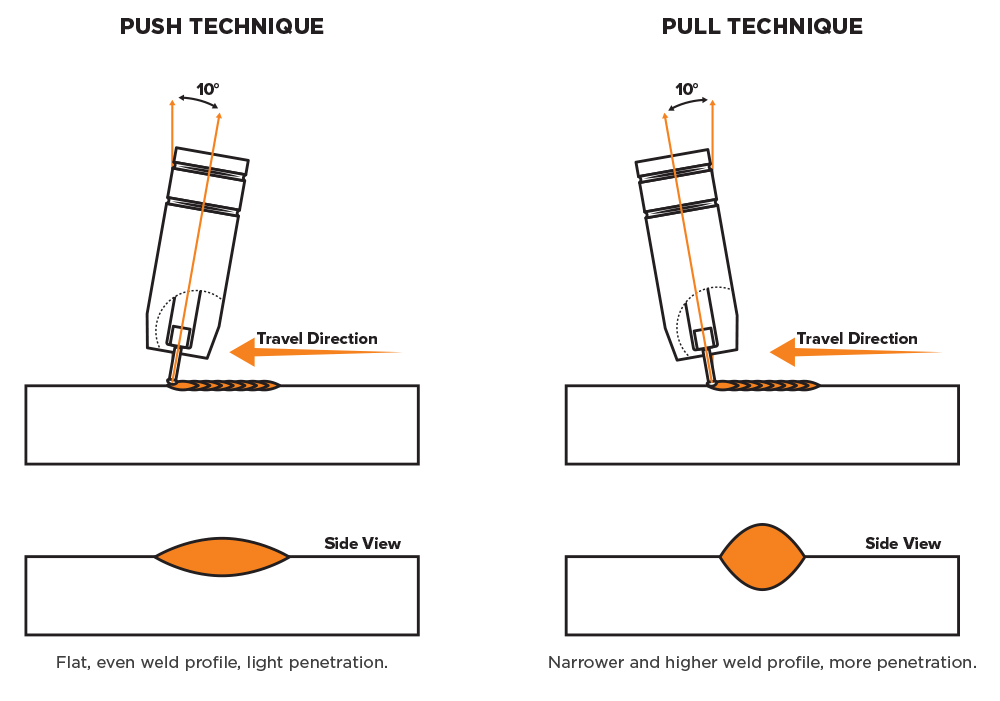

8. Use the Correct Gun Angle

I’ve found the ideal gun angle for MIG welding is between 10 and 15 degrees push angle.

You might need to adjust this angle depending on your joint type.
A more perpendicular angle provides deeper penetration, while a greater push angle gives a flatter bead.
Experiment within this range to find what works best for your application.

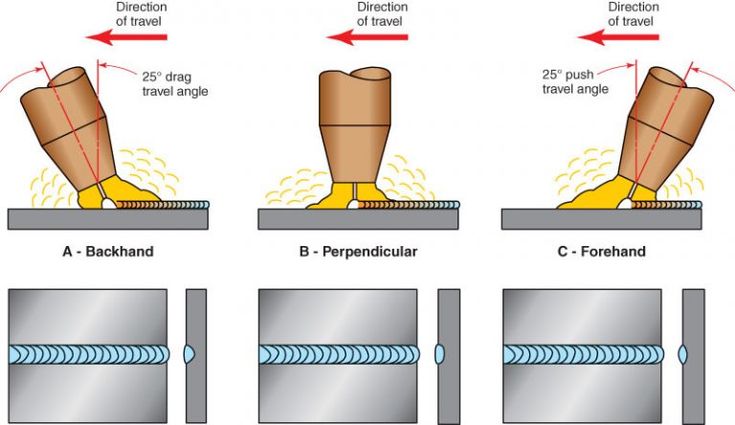

9. Push Your Welds

When MIG welding mild steel, pushing the puddle typically produces better results. If you pull the weld, you risk trapping contaminants.

Pushing allows you to clearly see the weld puddle and helps prevent defects.
As they say in MIG welding: if there’s no slag, you can drag.

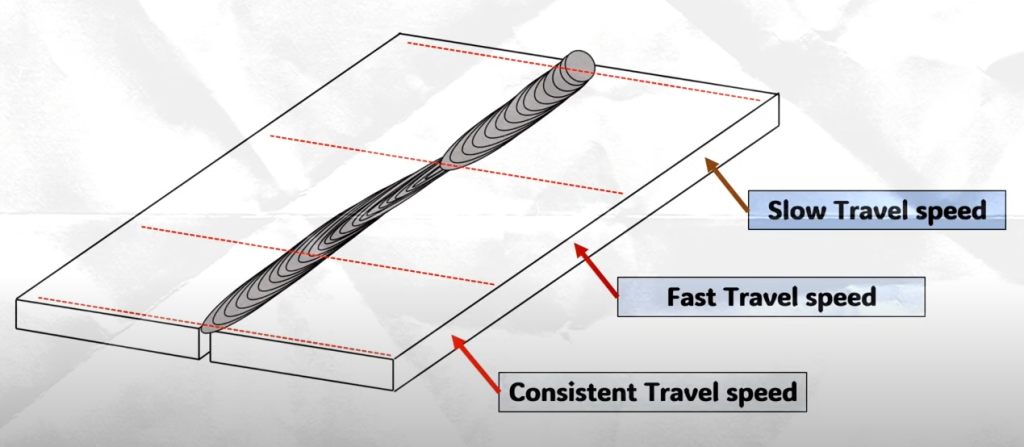

10. Control Your Travel Speed

Maintaining consistent travel speed is essential for uniform bead appearance.

Watch your weld puddle size and adjust your speed to keep it constant throughout the weld.

11. Perfect Your Gun Movement

You can make straight beads, but adding a slight side-to-side motion often produces better results.

Use small circular or cursive ‘e’ movements to ensure good tie-in at the toes of the weld.
Vertical up welds particularly benefit from a tight weaving motion to control the puddle.

12. Position Yourself for Ventilation

MIG welding produces fumes that you should avoid breathing. Position yourself so the fumes rise away from your breathing zone.
This positioning also gives you a better view of your weld puddle.

Always use proper ventilation and wear appropriate respiratory protection.

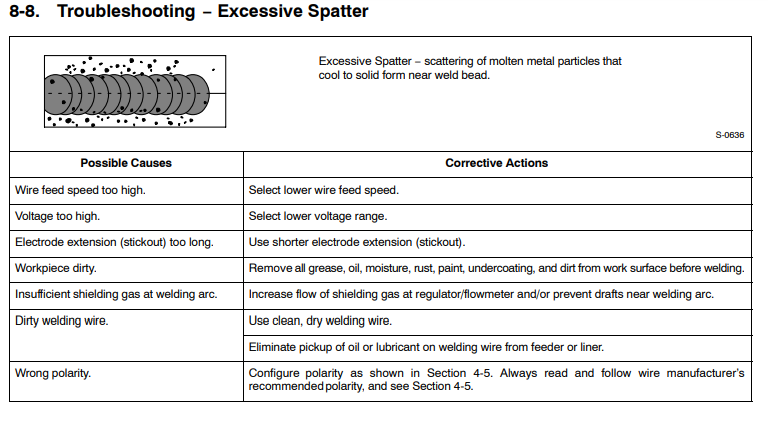

13. Troubleshoot Common Issues

You’ll encounter various welding problems that usually have simple solutions once identified.
Excessive spatter often means your voltage is too low or wire speed too high.

Porosity typically comes from inadequate gas coverage or contaminated material.
Bird-nesting (wire tangling at the drive rolls) usually indicates improper drive roll tension or a worn contact tip.
Poor fusion or penetration often means you need more voltage or slower travel speed.

14. Practice Without Welding

One of the best ways to improve is to practice your gun movements without actually welding. Turn off the wire feed and gas, and practice your movement patterns.

This dry practice helps you perfect your body position and movement before striking an arc.
The best part is you can practice as much as you want without using any consumables.
I always do a few practice runs before welding something important, especially if it’s in a tough position.

Wrapping It Up

Learning to MIG weld takes time and dedication, but these tips will help speed up your progress and improve your results.
Remember, nothing beats hands-on practice when it comes to developing your MIG welding skills.
